Lighting Contactors & Timers
Mechanically and electrically held lighting contactors, time switches, and photocontrols for automated control of lighting and electrical loads. From Intermatic, Tork, and ASCO.
Intermatic T104 Mechanical Time Switch 40A
208–277V, 40A, DPST, 24-hour dial, NEMA 1, mechanical, no battery
Tork 1101 7-Day Time Switch 40A
120V, 40A, SPST, 7-day, mechanical, NEMA 1 metal enclosure

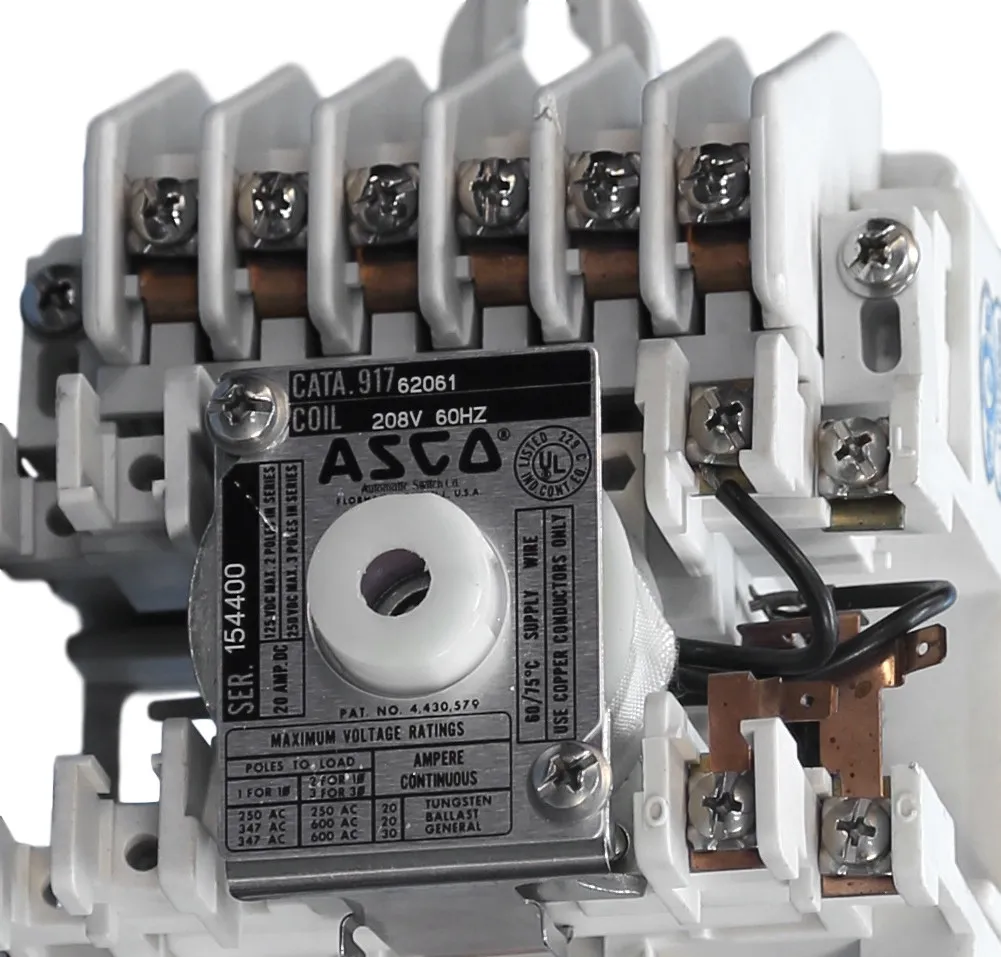

ASCO 917 Electrically Held Lighting Contactor 30A
30A, 4-pole, 277V coil, electrically held, NEMA 1, UL 508
Eaton C30CNM30A Mechanically Held Lighting Contactor
30A, 3-pole, mechanically held, 120V coil, NEMA 1 enclosure

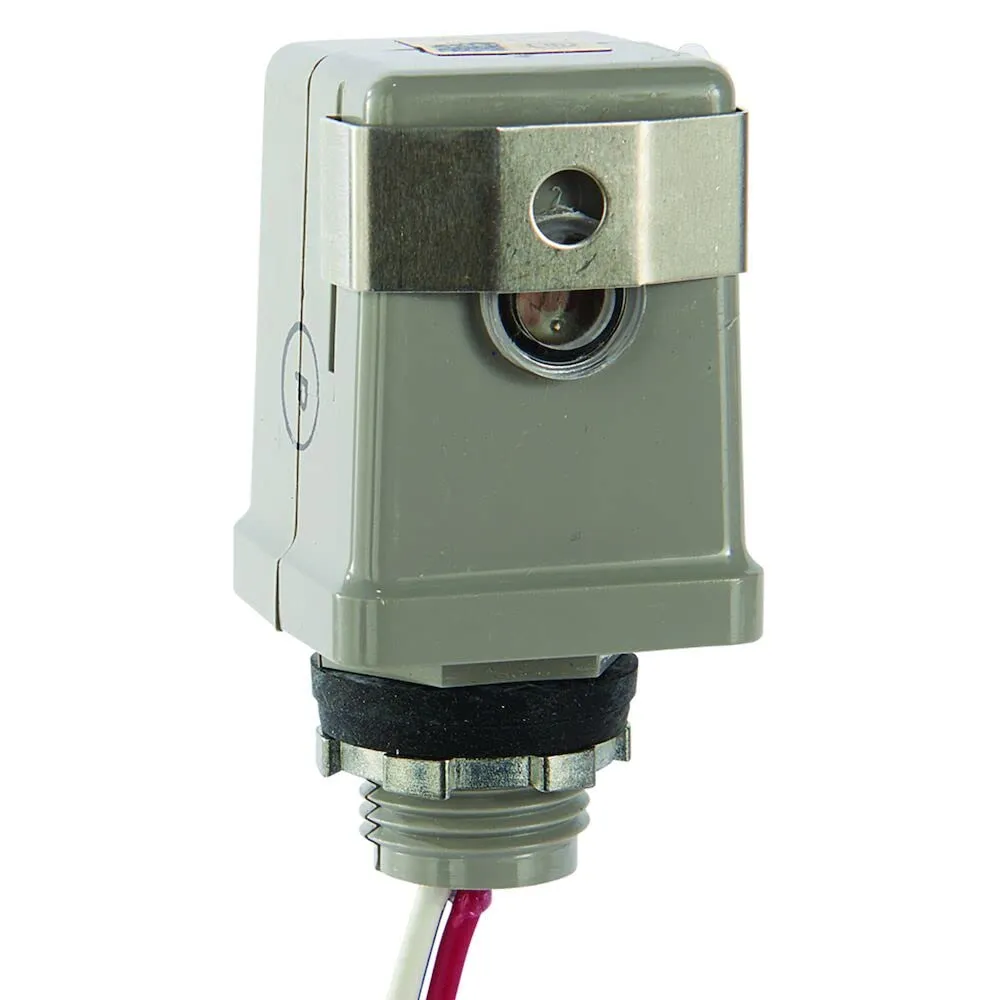

Intermatic K4121C Photocontrol 105–285V
105–285V, 1800VA tungsten, thermal-type, locking mount, dusk-to-dawn
Intermatic ET90115C 365-Day Astronomic Timer
120–277V, 30A, 1-circuit, astronomic, battery backup, NEMA 1
